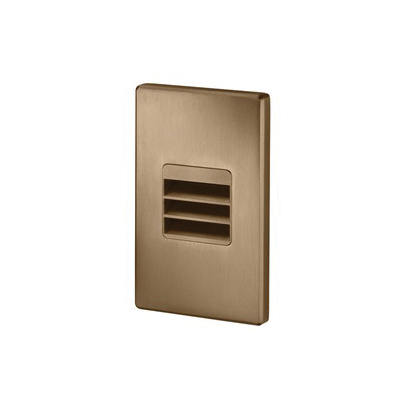

Juno® LMSW-3K-L-BZ Juno_Lighting_0001364

The LMSW mini LED step light with louver optic is designed to provide 50,000 hours of life and is ideal for residential, theatrical, or commercial applications. The IC-rated fixture is designed for installation in outdoor or indoor wall mount applications using standard junction boxes and for direct contact with insulating materials. Its modular design allows the fixture to be mounted in horizontal or vertical orientations.

Juno® Step Light, Mini Outdoor, Series: LMSW, 120 VAC, 2.6 W Fixture, 0.03 A, LED Lamp, 1 W Lamp, 2 Lamps, 50000 hr Average Life, 3000 K Color, IP65, Wall Mount, Die-Cast Aluminum Housing, Textured Bronze Housing, 5 in H x 3-5/16 in W x 5/16 in THK

• LEDs are rated for 50000 hr of life at 70 % lumen maintenance, no ultraviolet or infrared wavelengths, lead or mercury
• Mounted directly to aluminum heat sink for superior thermal management
• Modular design allows fixture to be mounted in horizontal or vertical orientation
• Louver optic conceals LED and provides a unique light distribution pattern, utilizes two 1W high lumen LEDs
• Designed to mount directly in standard junction boxes, 2 by 4 in or 4 by 4 in fitted with a single gang plaster ring 5/8-inch minimum depth
• UL Listed for indoor damp locations and through-branch wiring
• Maximum 4 no 12 AWG 75 degrees C through-branch circuit conductors for 2 x 4 junction box and maximum 8 no 12 conductors for 4 x 4
• Accommodates an input voltage of 120 VAC at 60Hz
• -20 deg C minimum starting temperature
• Rectangular shape

Standards/Approvals: UL Listed, cUL Listed, IC Approval, ROHS compliant

Application: Education, Government, Healthcare, Hospitality, Offices and Banks, Religious, Residential, Retail and Indoor Environment

• Installation Instructions https://b2b-stage.unilogcorp.com//ASSETS/DOCUMENTS/ITEMS/EN/Juno_LMSW_3K_C_WH_Installation_Instructions_Sheet.pdf
• Specification Sheet https://b2b-stage.unilogcorp.com//ASSETS/DOCUMENTS/ITEMS/EN/Juno_LMSW_3K_C_WH_Datasheet.pdf
