Juno® LMS-41K-L-BZ Juno_Lighting_0001343

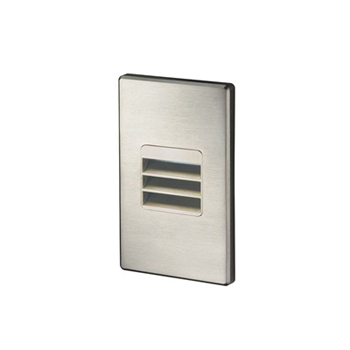

Juno® Step Light, Indoor Mini, Series: LMS, 120 VAC, 2.6 W Fixture, 0.03 A, LED Lamp, 1 W Lamp, 2 Lamps, 50000 hr Average Life, 4100 K Color, Wall Mount, Die-Cast Aluminum Housing, Plated Bronze Housing, 4-1/2 in H x 2-3/4 in W x 5/16 in THK

• LEDs are rated for 50000 hr of life at 70 % lumen maintenance, no ultraviolet or infrared wavelengths, lead or mercury
• Die-cast aluminum construction designed for use in IC or non-IC applications
• Modular design allows fixture to be mounted in horizontal or vertical orientation
• Louver optic conceals LED and provides a unique light distribution pattern, utilizes two 1W high lumen LEDs
• Designed to mount directly in standard junction boxes, 2 by 4 in or 4 by 4 in fitted with a single gang plaster ring 5/8-inch minimum depth
• UL Listed for indoor damp locations and through-branch wiring
• Maximum 4 no 12 AWG 75 degrees C through-branch circuit conductors for 2 x 4 junction box and maximum 8 no 12 conductors for 4 x 4
• Accommodates an input voltage of 120 VAC at 60Hz
• -20 deg C minimum starting temperature
• Rectangular shape
• LEDs are rated for 50,000-hours of life at 70 percent lumen maintenance; no ultraviolet or infrared wavelengths, lead, or mercury

Standards/Approvals: UL Listed, cUL Listed, IC Approval, ROHS compliant

Application: Education, Government, Healthcare, Hospitality, Offices and Banks, Religious, Residential, Retail and Indoor Environment

• Installation Instructions https://b2b-stage.unilogcorp.com//ASSETS/DOCUMENTS/ITEMS/EN/Juno_LMS_41K_C_BZ_Installation_Instructions_Sheet.pdf
• Specification Sheet https://b2b-stage.unilogcorp.com//ASSETS/DOCUMENTS/ITEMS/EN/Juno_LMS_41K_C_BZ_Datasheet.pdf
